SMT Taut Wire Weights are used to provide a reference point on the seabed from which all subsequent positional data is referenced from.
SMT-TW-SI-38 - Weight [460kg]
SMT-TW-SI-149 - Weight [360kg]
SMT Taut Wire Diameter Rope is a high performance, galvanised wire rope.
SMT-TW-SI-45 - Wire Rope [4.9mm ,700m ]
SMT Taut Wire Rope [5.0mm , 700 M]
SMT Taut Wire Rope [4.9mm , 500 M]
SMT Taut Wire Termination Kit
SMT Taut Wire termination kits includes all items required to connect a weight onto the end of the wire rope.
Kit includes: 1x Grease Spring, 1x Target Plate, 1x Target Plate Spring, 2x Eureka Grips, 1x Thimble, 1x Swivel and 1x Safety Shackle.

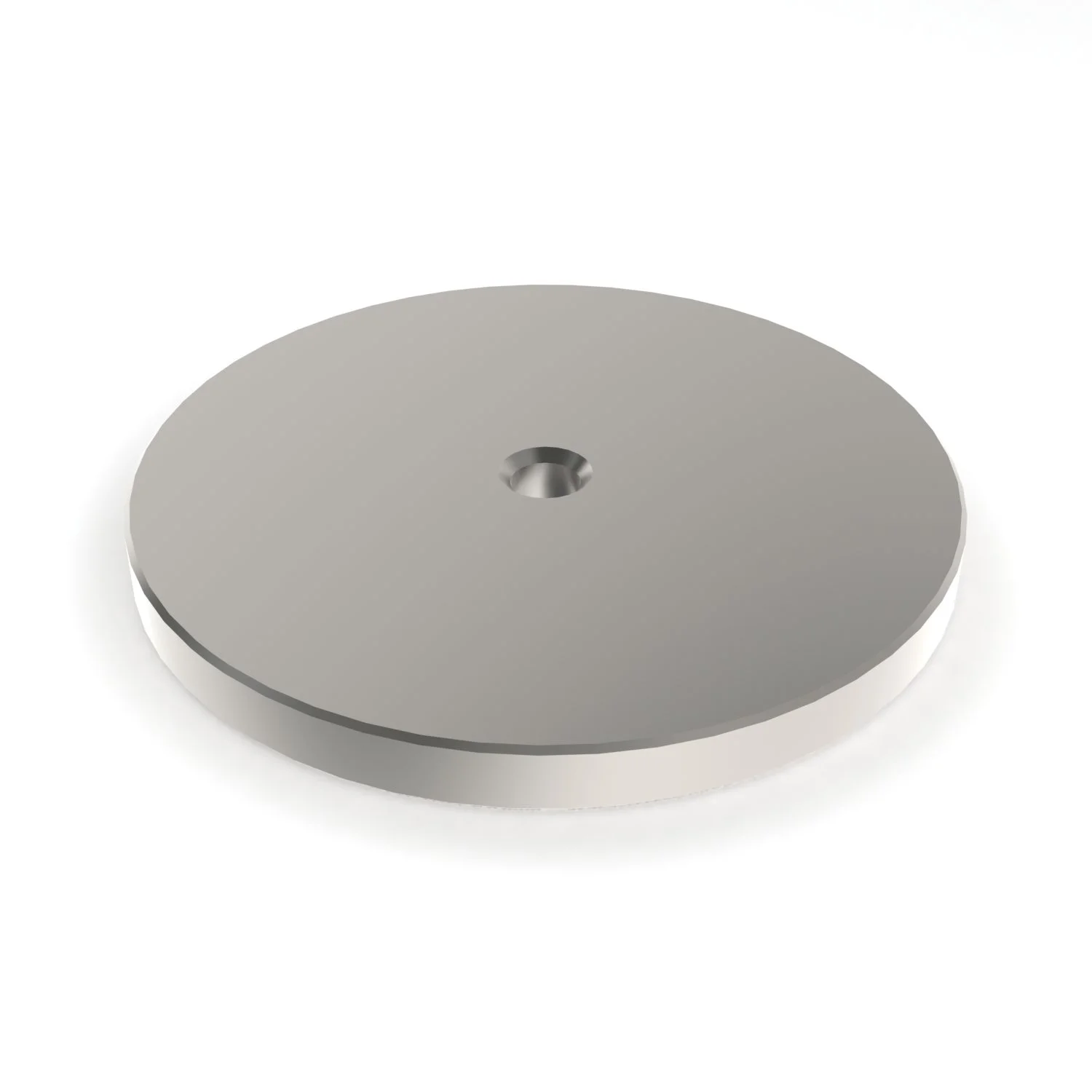

Target Plate
SMT Taut Wire target plates are used to stop the depressor weight from being lifted into the gimbal head during operation.
Manufactured from stainless steel.
SMT-TW-MP-RB-46
Swivels
SMT Taut Wire Swivels are mounted between the weight and wire rope to limit damage being cause to the wire rope during lifting
and lowering operations. 750kg SWL.
SMT-TW-SI-39

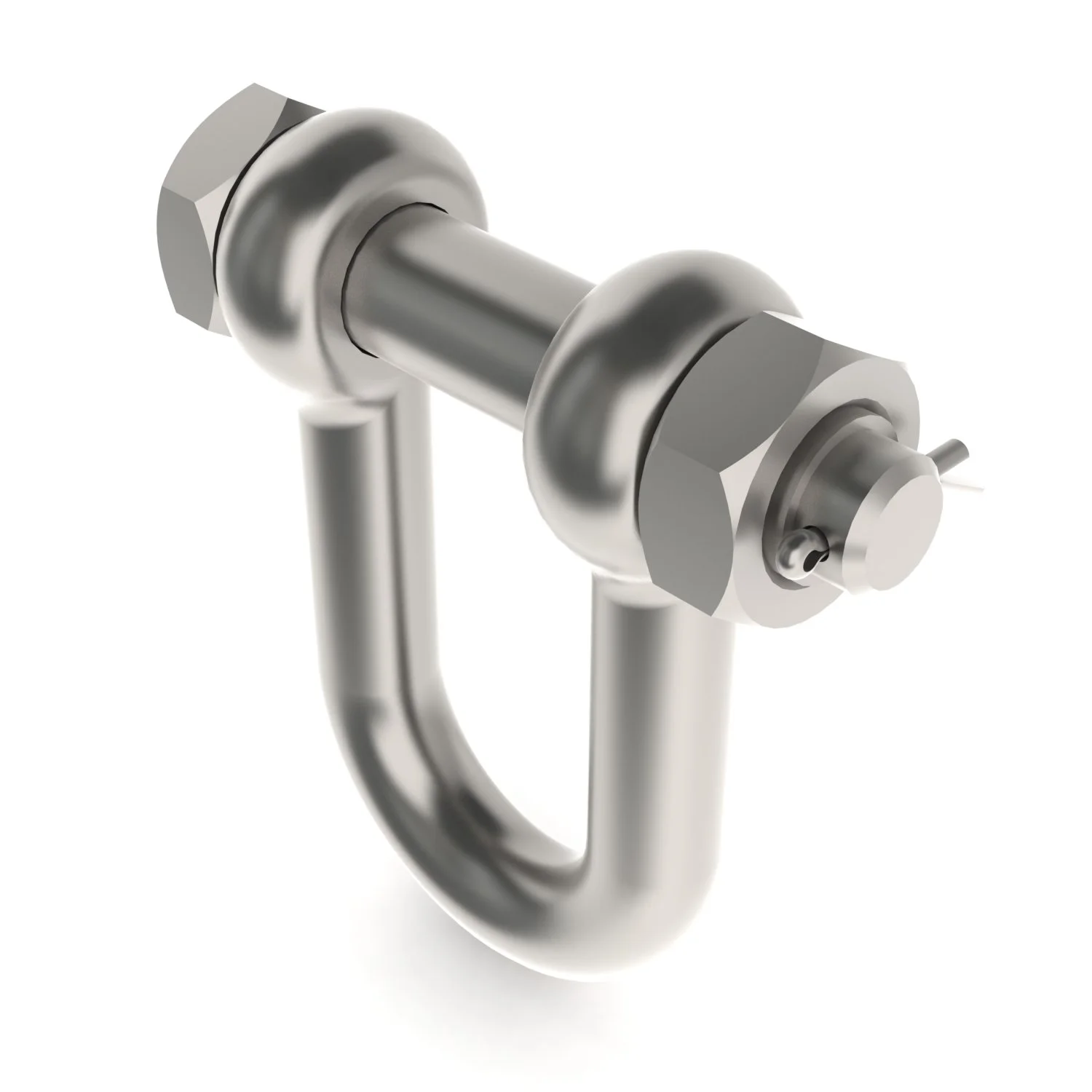

Safety Shackles
SMT Taut Wire safety shackles are used to connect the weight onto the wire rope.
1000kg SWL. Manufactured from stainless steel.
SMT-TW-SI-40

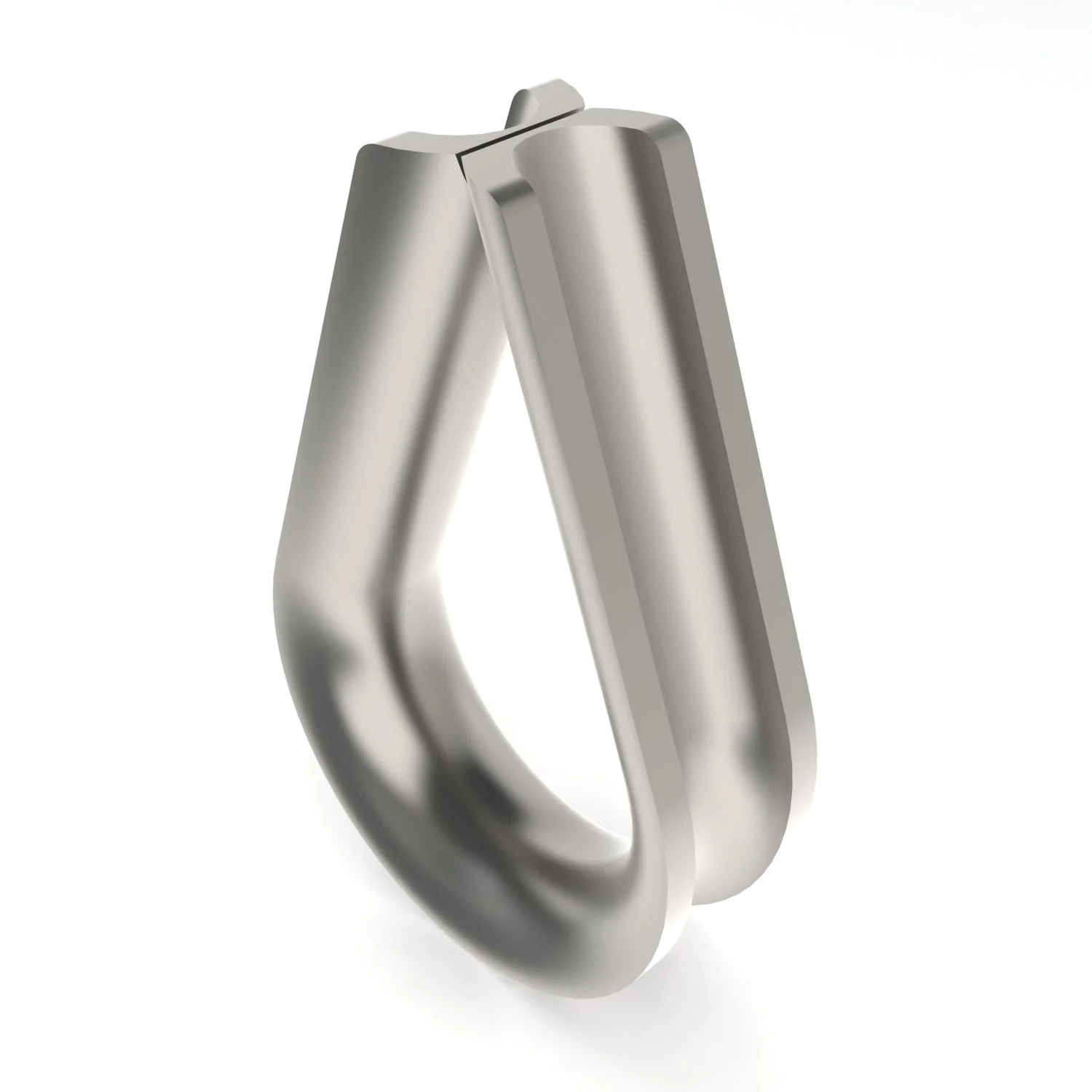

Thimbles
SMT Taut Wire thimbles are used to support the end of the wire rope when it is formed into a loop for attaching the weight.
Manufactured from stainless steel.
SMT-TW-SI-41
Eureka Grips
SMT Taut Wire eureka grips are used to secure a loop at the end of the wire rope to allow the weight to be attached.
Two should be used per termination on SMT systems.
SMT-TW-SI-42

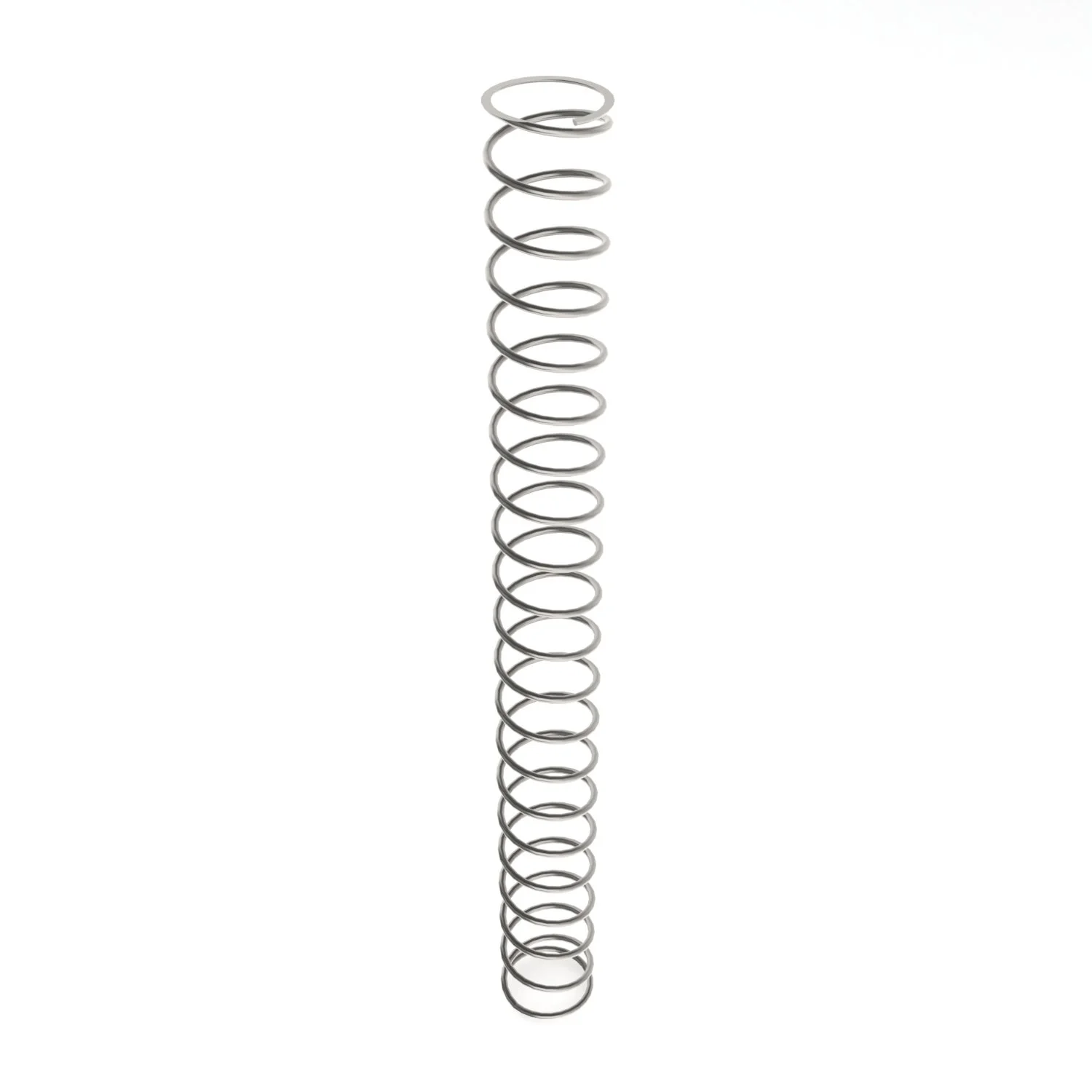

Target Plate Springs
SMT Taut Wire target plate springs are used in conjunction with a target plate to allow time for the weight to stop safety once detected.
Manufactured from stainless steel.
SMT-TW-SI-43
Spring [3rd Party Taut Wire] SMT-TW-SI-43b

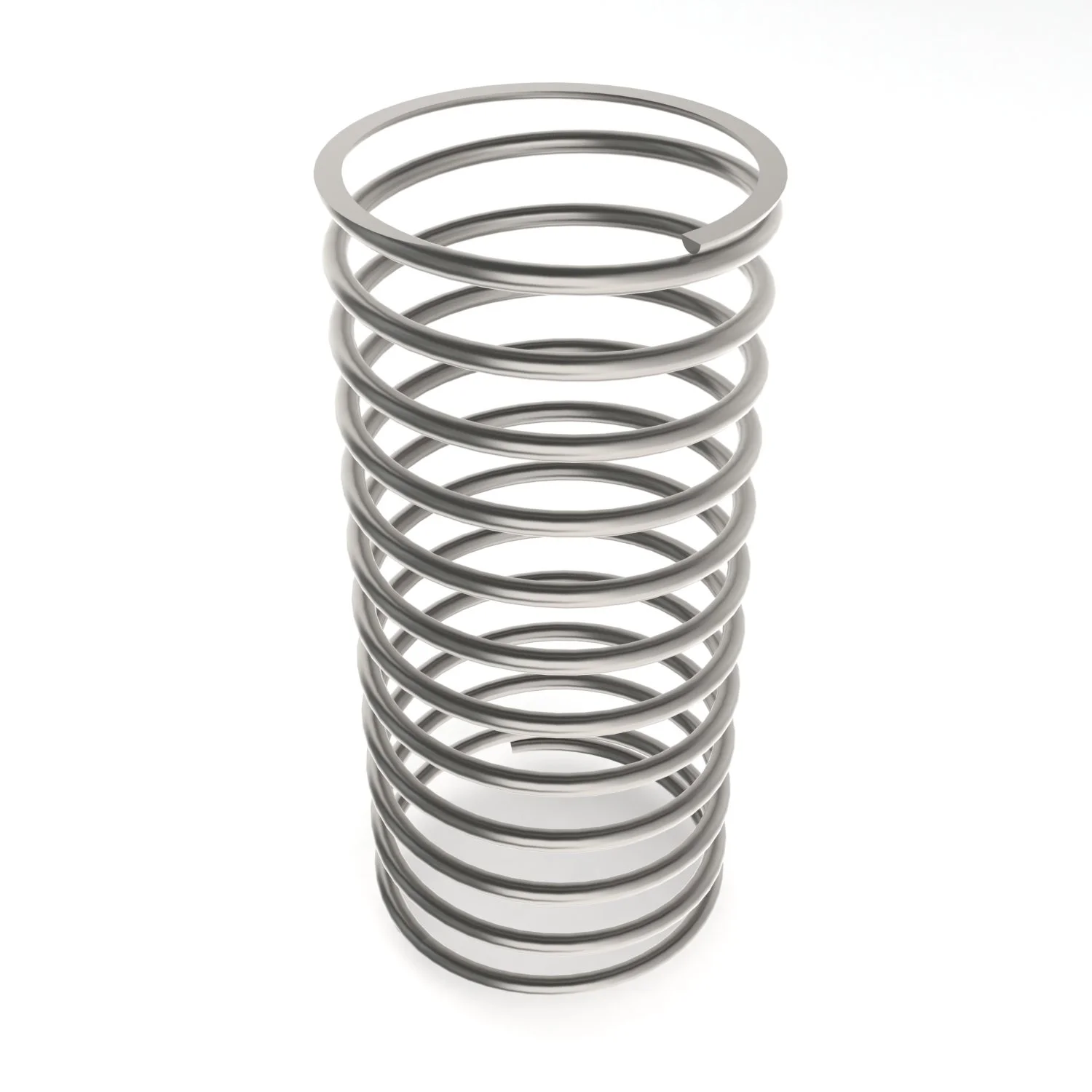

Grease Spring
SMT-TW-SI-44

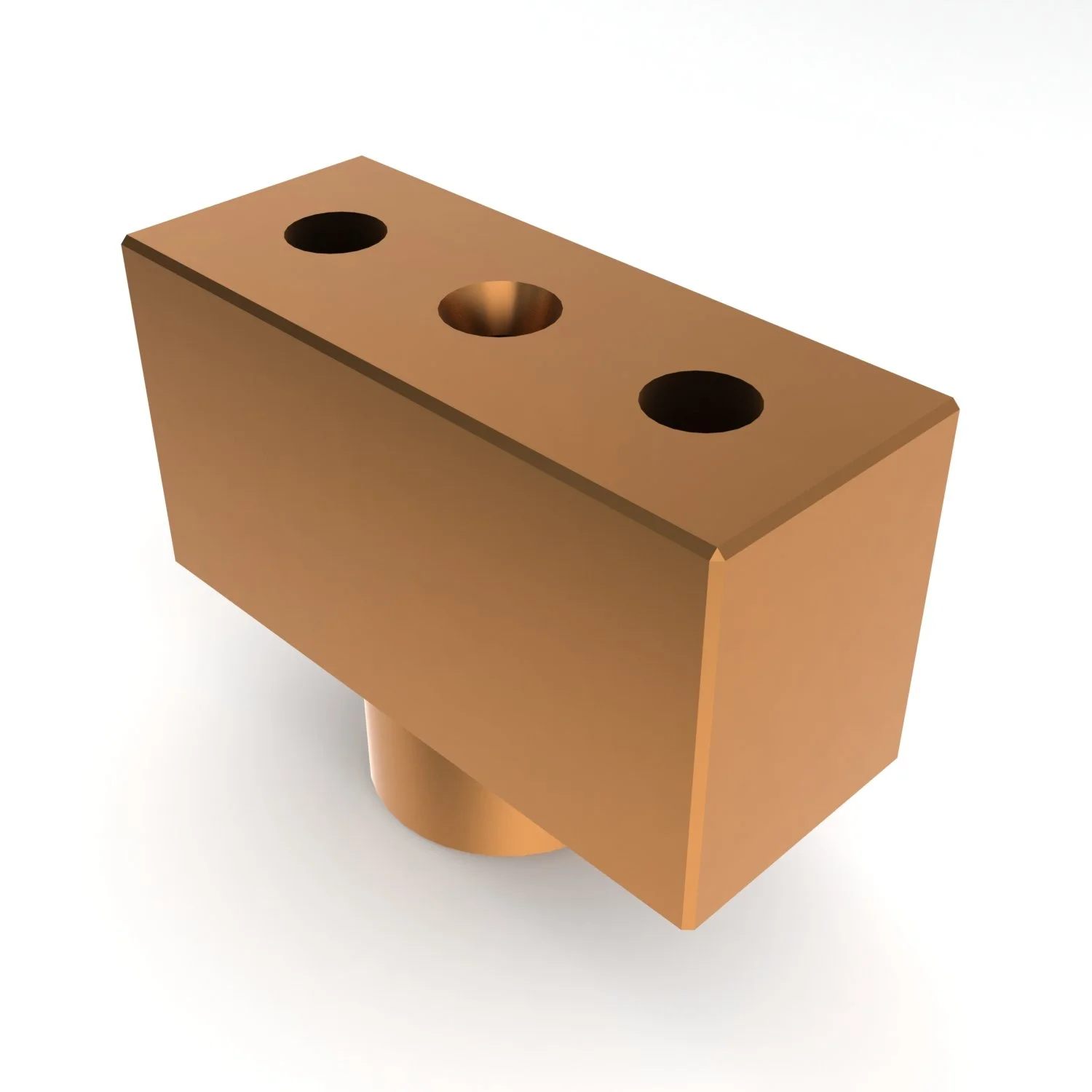

SMT-TW-MP-FB-17 - Wire Rope Guide
